RS PRO Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 10m Length, Ленточный кабель

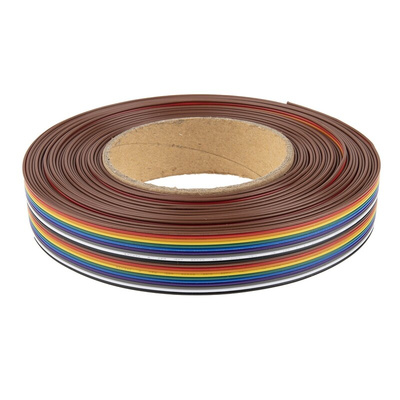

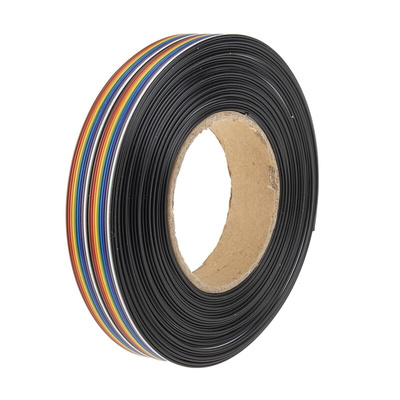

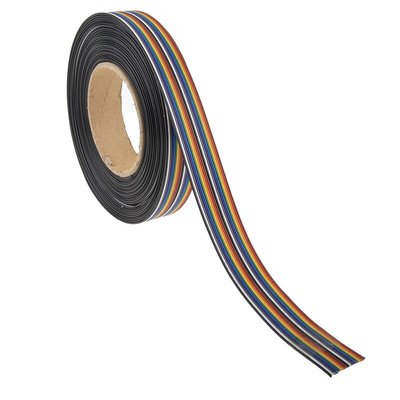

RS PRO 20 Way Unscreened Flat Ribbon Cable, 25.4 mm Width, 10 m

Using a flat ribbon cable is a neat way to mass terminate equipment that transmits data. Commonly used with computers, audio and digital systems, this 20-way cable from RS PRO enables you to connect devices easily. It has a capacitance of 50 pF/m and characteristic impedance of 100 Ω so it's suitable for carrying data.

In a 10 m long spool, the unscreened cable is 25.4 mm wide, with seven core strands of 0.15 mm² each. It's highly resistant to temperature changes and will operate down to -20˚C without cracking and up to +105˚C without melting. It's insulated with colour-coded PVC.

You can use this cable in general-purpose settings for wiring electrical and electronic kit as it conforms to the UL 1007 standard. It also meets the electrostatic discharge standards of ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 so it won't damage equipment. RoHS compliant, it contains minimal hazardous substances.

Features and Benefits

• 20-way flat ribbon cable
• Length of 10 m
• Used for mass termination in computer, audio and digital equipment
• Unscreened
• Width of 25.4 mm
• Pitch of 1.27 mm
• Voltage rating of 300 V
• Seven-stranded conductors have a cross-sectional area of 0.15 mm²
• Characteristic impedance of 100 Ω is suitable for data transmission
• Capacitance of 50 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting
• Multicoloured sheath
• Conforms to standards UL 1007 (general purpose internal wiring), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)
