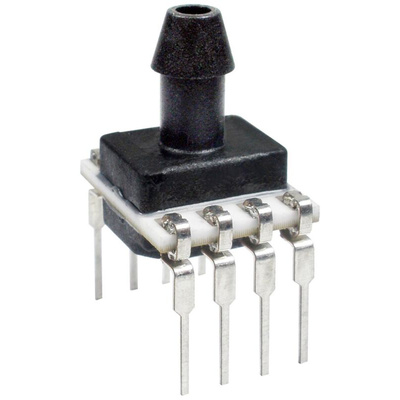

SSCDLNN100PGAA5, Honeywell Gauge Pressure Sensor, 100psi Operating Max, Through-Hole Mount, 8-Pin, DIP

Honeywell DIP Pressure Sensor, 8 Pin, 100psi - SSC Series - SSCDLNN100PGAA5

This pressure sensor from Honeywell is a reliable way to gauge atmospheric changes. It's piezo-resistive, using silicon and ceramic materials to create an accurate analogue output with long-term stability. The total error band of this sensor is just ±2%. The unit comes ready for installation, so you can set it up quickly. Precision ASIC (application-specific integrated circuit) conditioning and temperature compensation mean it's fully calibrated for immediate use right out of the box. You can mount it in any direction without affecting its sensitivity and function, making it suitable for a wide range of barometry and pneumatic applications.

Features & Benefits

• Suitable for use with pressures ranging between 1 and 100psi (pounds per square inch), so it's compatible with many commercial and industrial machines
• Compact size of 10 (W) x 10mm (L), meaning it takes up minimal space on a circuit board
• Low power consumption makes it an energy-efficient choice

Applications

• Gas chromatography
• Ventilators and respiratory machines
• Hydraulics and pneumatics

How do I mount this sensor?

This sensor comes in a DIP (dual in-line) package with eight pins, designed for quick and easy through-hole mounting directly onto your PCB (printed circuit board).

Datasheet-SSCDLNN100PGAA5
