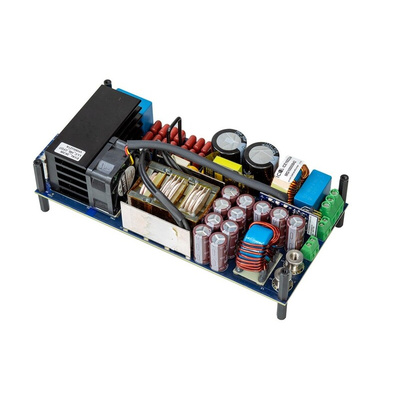

Evaluation board 3300 W 52 V LLC with 600 V CoolMOS™ CFD7
This converter is a complete Infineon system solution for a 3300W LLC DC-DC converter from 400 V to 51.5 V achieving 98.1 percent peak efficiency. The achieved power density is in the range of 4 W/cm³ (66 W/in³), which is enabled by the use of SMD packages, the innovative stacked magnetic construction and the innovative cooling solution.
This DC-DC converter proves the feasibility of HB LLC as a high-efficiency topology for a 3.3 kW converter, at the level of full-bridge LLC or dual-stage LLC when combined with the latest best-in-class Infineon devices with their benchmark low RDS(on) and low parasitics.
The digital control, powered by Infineon XMC™ microcontrollers, is not only capable of controlling LLC topology but is also the most effective way to overcome its difficulties and pitfalls. Moreover, the included protection mechanisms and control schemes further boost the reliability and performance of the latest Infineon devices, achieving the best possible efficiency.
Summary of Features
•High efficiency and high power density
•Novel integrated magnetics structure
•Full digital control
•Graphical User Interface (GUI)
•Configurable variable output voltage
Summary of benefits
•Best performance HV and LV power devices
•Full or nearly full ZVS in all load range
•Full digital control
List of components
•600 V CoolMOS™ CFD7 superjunction MOSFET (IPW60R018CFD7) 222-4719
•N-channel power MOSFET (BSC037N08NS5) 222-4618
•1200 V single high-side gate driver IC (1EDI20N12AF) 133-9927
•Dual-channel and functional isolated MOSFET gate drivers (2EDF7275F) 244-0940
•Quasi-resonant flyback PWM controller (ICE5QSAG)
•800 V CoolMOS™ P7 SJ MOSFET (IPU80R4K5P7) 222-4717
•Industrial microcontroller (XMC4200-F64k256BA)
•Medium power Schottky diode (BAT165) 249-6997
•DC-DC step-down voltage regulator (IFX91041EJ V33)
•200 V secondary side high speed controller (IR1161L)
Datasheet - EVAL3K3WLLCHBCFD7TOBO1Infineon 1EDI20N12AF DataSheetInfineon BAT165SERIES DatasheetInfineon BSC037N08NS5 DataSheetInfineon ICE5QSAG DatasheetInfineon IFX91041 DatasheetInfineon IPU80R4K5P7 DatasheetInfineon IR1161L DatasheetInfineonXMC4100/XMC4200 Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
