EVAL3K3WTPPFCSICTOBO1, Infineon EVAL_3K3W_TP_PFC_SIC PFC Controller for Power Supplies

Infinion EVAL_3K3W_TP_PFC_SIC Evaluation Board

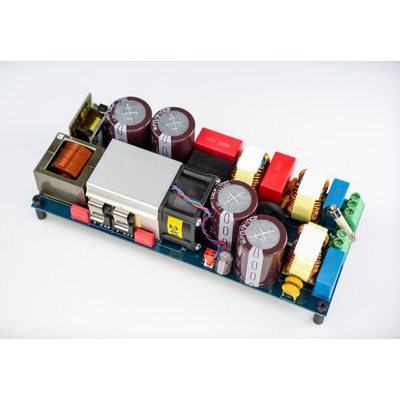

The EVAL_3K3W_TP_PFC_SIC evaluation board from Infineon Technologies is a system solution for a bridgeless totem-pole power factor corrector (PFC) with bidirectional power capability. Perfect for use with applications that require high efficiency and high power density, the EVAL_3K3W_TP_PFC_SIC evaluation board consists of a bridgeless totem-pole topology. Furthermore, the EV board is enabled by Infineon Technologies power semiconductors as well as drivers and microcontroller. The simple totem-pole topology provides full utilization of the PFC inductor and switches and offers a reduced part count.

The EVAL_3K3W_TP_PFC_SIC evaluation board also features reverse power flow (inverter operation for grid-connected applications) thanks to the inherent bi-directional power flow capability of the totem-pole topology. This enables the design to be used in battery formation applications or battery chargers.

Features and Benefits

High efficiency bridgeless totem-pole PFC
Perfect for high efficiency applications (close to 99%)
Bidirectional operation (digital control)
High power density
Enabled by CoolSiC™ MOSFET 650V
Digitally controlled with XMC1404
Bidirectional capability (DC-AC operation)
Compact form factor (72W/in3)
Low component count

Applications

The EVAL_3K3W_TP_PFC_SIC board is ideal for use with applications that require high efficiency and power density including energy storage systems, battery formation and charging, EV-charging, telecom and much more.

What components are used in the board?

600 V CoolMOS™ C7 SJ MOSFET and 650 V CoolSiC™ silicon carbide MOSFET
2EDF7275F isolated gate drivers (EiceDRIVER™)
XMC1404 microcontroller
ICE5QSAG CoolSET™ QR Flyback controller
950 V CoolMOS™ P7 SJ MOSFET

Datasheet - EVAL3K3WTPPFCSICTOBO1
