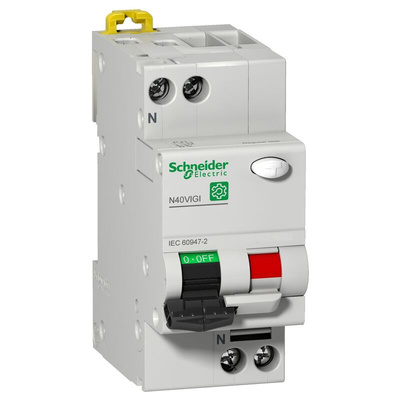

M9D11616, Schneider Electric RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type C, Multi 9 Range

Schneider Electric RCBO, Type C, 16A Current Rating - N40 Vigi Series - M9D11616

This residual current breaker with overcurrent protection (RCBO) from Schneider Electric protects your equipment against harmful overload and earth-leakage currents. The unit's thermoplastic housing is resistant to impact and provides insulation to protect you from electric shocks. It has a Type C tripping characteristic, meaning it trips at 5 to 10 times its 16A rated current. This makes it suitable for high-power devices where substantial surges can be expected, such as X-ray machines or welding tools.

Features & Benefits

• Compact dimensions of 70 (D) x 36 (W) x 81mm (H) to fit into setups with limited space
• Earth-leakage sensitivity of 30mA for a speedy response to faults
• Mechanical service life of 20,000 operations for long-term performance
• DIN rail mounting for quick and easy installation

Applications

• Distribution boards
• Switchgears
• Industrial control cabinets

Is this RCBO touch-proof?

Yes, it is, as it has an IP20 (ingress protection) rating. This rating also indicates that it's resistant to dust or objects greater than 12mm in size.

What's the device's rated operational voltage?

This RCBO has a rated operational voltage of 240V AC 50Hz.

Datasheet - M9D11616

Catalogue - Multi9

Product Environmental Profile
