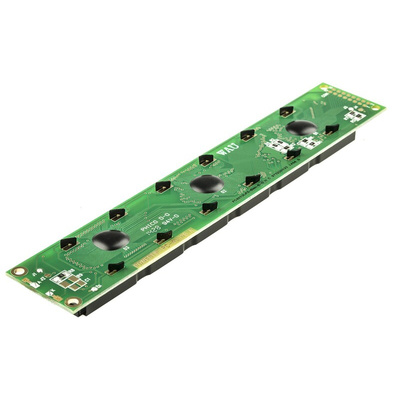

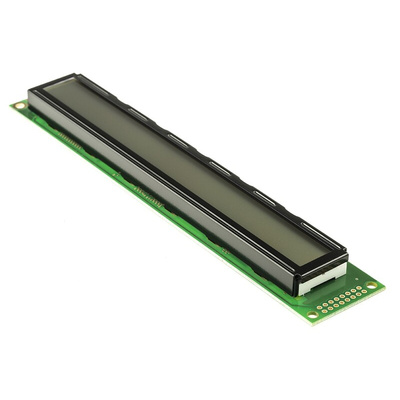

Powertip PC4002LRS-B Alphanumeric LCD Display, 2 Rows by 40 Characters, Transflective, Дисплей

Powertip Alphanumeric LCD

The Powertip alphanumeric LCD has a character matrix of 2 rows by 40 characters and transflective display mode. The viewing area for this display is 154.5mm of height and 15.3mm of width.
Note:
Reverse polarity connection to the module will cause irreparable damage.
Caution:
Observe anti-static precautions when storing or handling these LCD modules.

Features and Benefits

5 x 7 dot matrix format with cursor
160 characters and symbols
Display matrix technology is FSTN, STN, TN
Cursor commands are home, ON/OFF, shift and set direction
Display commands are clear, shift, ON/OFF, read and write
Parallel Interface to 4-bit or 8-bit microprocessor
Power supply is 5V
ST7066U controller
Wide viewing angle
Operating temperature is between 0°C and 50°C

Datasheet
