Actuator Hub, IO-LINK DC 24v, Digital IO-Link Interface, for 1 to 3 actuators

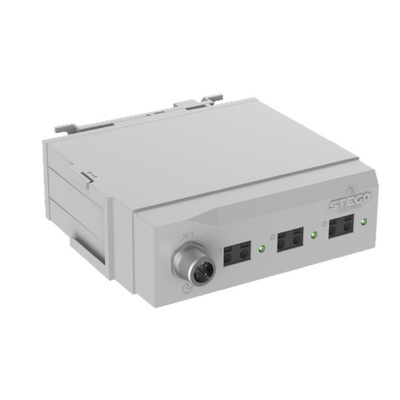

The STEGO IO-Link Actuator Hub AHC 072 can switch up to three actuators or loads on process level via relays. Switching commands for the loads are received via the IO-Link interface from a higher-level control unit: edge computer, cloud, PLC control, etc. The actuator hub supports both AC and DC loads, independent of their function or whether they have a communication interface. This means that analog devices, such as heaters or filter fans, can easily be integrated into a digital network.
Number of relay outputs 1 to 3 contact makers (NO), with 3 optical indicators
Max. switching capacity AC 240 V, 10 A, DC 30 V, 10 A
Max. inrush current AC 16 A for 10 sec
Actuator connection 2-pole Push-In terminals (3 x)
IO-Link connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded
Electrical protection Reverse-polarity, short circuit, overvoltage protection
Mounting clip for 35 mm DIN rail, EN 60715 and screw mounting (M5)
Casing plastic according to UL94 V-0, light grey
Datasheet - 07200.2-00| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
