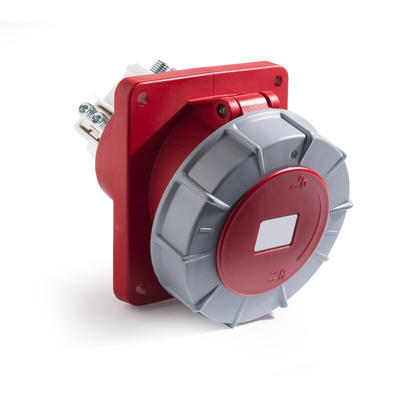

RS PRO IP67 Red Panel Mount 3P + N + E Angled Industrial Power Socket, Rated At 125A, 380 → 415 V

RS PRO Industrial Power Socket Outlet

Introducing the range of RS PRO Industrial Power Socket Outlets, ideal as a reliable and robust solution for heavy-duty power applications. The housing material is made from Nylon 6 and ABS, providing excellent mechanical strength and durability and ensuring complete reliability and optimum performance for reliable power distribution. In addition to this, the IP67 rating provides a waterproof and dustproof housing and the simple-to-install design saves time and effort during the setup and installation of the socket. These industrial plug connectors are ideal for use in challenging environments and industrial applications where performance and quality are key.

Features and Benefits:

• This RS PRO industrial power socket outlet has a robust design, making it ideal for heavy-duty industrial environments


• Made from Nylon 6 and ABS, it provides excellent performance and protection from extreme temperature fluctuations, while the IP67 rating makes the connector housing dustproof and waterproof for additional peace of mind


• Each connector follows industry-standard colour coding in compliance with BS EN 60309-2 / BS4343 and IEC 309 referring to the connector’s rated voltage


• The mounting bracket with pre-drilled holes makes installation effortless with secure mounting


• Compatible with most industry standard connectors

Applications:

Industrial power connectors often feature a heavy-duty design making them ideal for powering machinery, power tools, industrial equipment and more in a range of environments. They often feature a locking mechanism to prevent incorrect mating and a secure connection between plugs and sockets, while offering excellent protection. Industrial power connectors are commonly used in areas such as:

• Warehouses


• Construction sites


• Agriculture


• Factories and manufacturing industries


• Garages


• Sports and entertainment

What voltages does the CEE colour coding refer to?

• Violet - 20 V to 25 V


• White - 40 V to 50 V


• Yellow - 100 V to 130 V


• Blue - 200 V to 250 V


• Red - 380 V to 480 V


• Black - 500 V to 1000 V
