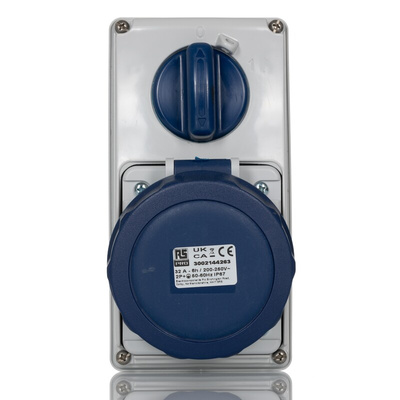

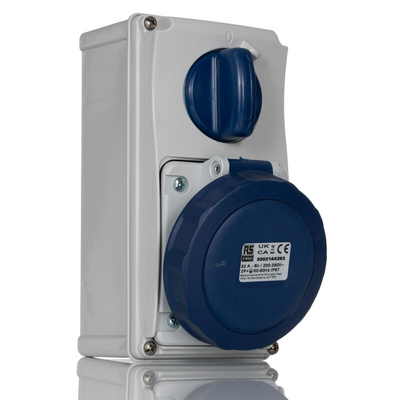

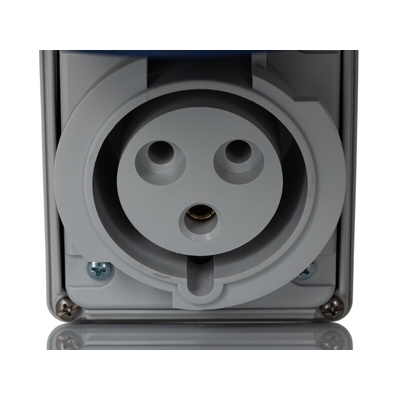

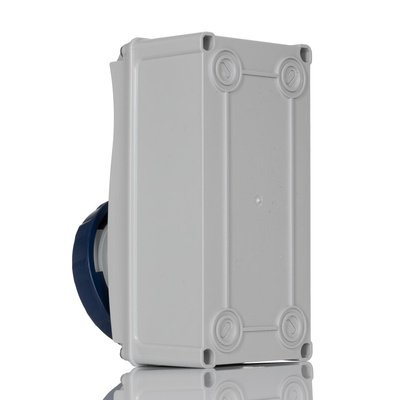

RS PRO IP67 Blue Wall Mount 2P + E Vertical Industrial Power Socket, Rated At 32A, 230 V

RS PRO 2P+E Vertical Switched Interlocked Wall MountedSocket, 230V

A hardwearing industrial Power Socket, ideal as a reliable and robust solution for heavy-duty power applications. The housing material is made from Nylon 6 and ABS, providing excellent mechanical strength and durability and ensuring complete reliability and optimum performance for reliable power distribution.
In addition to this, the IP67 rating provides a waterproof and dustproof housing and the simple-to-install design saves time and effort during the setup and installation of the socket.
The connector follows industry-standard colour coding in compliance with BS EN 60309-2 / BS4343 and IEC 309 referring to the connector’s rated voltage.
This socket panel outlet units prevent a live plug being inserted or removed without the best possible connection, therefore ensuring optimum safety and avoiding any instance of sparks that could cause fire.
A reliable and hardwearing industrial socket supplied with a pre-drilled mounting bracket and compatible with most industry standard connectors. Ideal for use in challenging environments and industrial applications where performance and quality are key.

Features and Benefits

230V Industrial socket
Wall mounted
2P+E pole format
Nylon and ABS construction
Industry standard blue colour coding
Insulating resistance >10MΩ@500Vdc
Total dimensions of 180 x 90 x 165mm

Applications

Industrial power connectors often feature a heavy-duty design making them ideal for powering machinery, power tools, industrial equipment and more in a range of environments. They often feature a locking mechanism to prevent incorrect mating and a secure connection between plugs and sockets, while offering excellent protection. Industrial power connectors are commonly used in areas such as:

• Warehouses


• Construction sites


• Agriculture


• Factories and manufacturing industries


• Garages


• Sports and entertainment

What voltages does the CEE colour coding refer to?

• Violet - 20 V to 25 V


• White - 40 V to 50 V


• Yellow - 100 V to 130 V


• Blue - 200 V to 250 V


• Red - 380 V to 480 V


• Black - 500 V to 1000 V

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
