555054, W Robinson And Sons 230 V Direct Coupling Submersible Submersible Water Pump, 250L/min

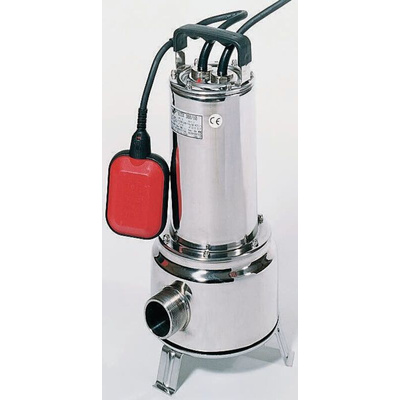

W Robinson And Sons Submersible Water Pump

The W Robinson And Sons direct coupling submersible water pump is the latest device that manufactured from 304 stainless steel. It is an effective product with a maximum flow rate of 250s/minute. This is used in conditions where contamination or rust is unacceptable.

Supplied with:
10m H07 RNF cable conforming to current regulations
.

Features and Benefits

The supply voltage is 230V
Input power is 1.1kW
Maximum head is 8m
Output connection size is 2in
Maximum fluid temperature is 50°C
Thermal overload motor, double seal, lubricated in oil sump and interchangeable ceramic brush on rotating shaft
Insulation class F \t
Lubricated in oil sump and protected by V-ring sand-guard
Self-sealing Vortex system impeller in cast stainless steel
Free passage of 40mm solids

Applications

Used to drain seepage
To pump up clear and waste rain water from gratings or wells
To pump waste and clear water of domestic, civil, and industrial use
For channel irrigation system and water transferring from streams
Basins and lakes
Drainage of rooms, tanks and swimming pools of clear, waste, muddy, and slimy water
Used also for industrial application such as spraying booths, transferring liquids, washing, etc.
