Bulgin 10A, 250 V ac Male Snap-In IEC Filter BZV03/A0620/05, Фильтр

Double Fused (Vertical)

Depth behind panel including Fastons - 62.5mm

Note

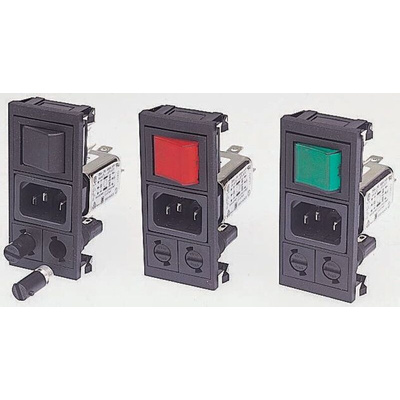

214-6186 is Red, 214-6209 is Green and 214-6170 is non illuminated.

Standards

IEC/EN 60950

Warning

Neutral line must not be fused where it is referenced to earth

Approvals

UL recognised component, CSA certified, VDE, SEMKO

Bulgin Double Fused IEC Filter

The Bulgin IEC fused filter is a dual-pole, vertical poly snap mount with C14 male connector switch power inlet. It has a voltage rating of 250VAC and a current rating of 6A. The filter has an inlet with 2 fuse holders and a DP green neon switch. It requires operating frequency ranging between 50Hz and 400Hz.

Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

6.3mm spade terminals (inlet legs)
Cold condition
Operating temperature ranges between -40°C and 70°C

Applications

Industrial use

Certifications

UL approved
CSA certified
VDE
SEMKO
IEC/EN 60950

Approvals

UL Listed; CSA Certified; VDE; SEMKO

Panel Mount Switched IEC Power Inlet

A selection of general purpose switched IEC power inlet filters ranging from fused types to medical versions. They are available in single and double pole variants, with and without red or green neon illumination. The fused versions accept 5x20mm ceramic fuses.
