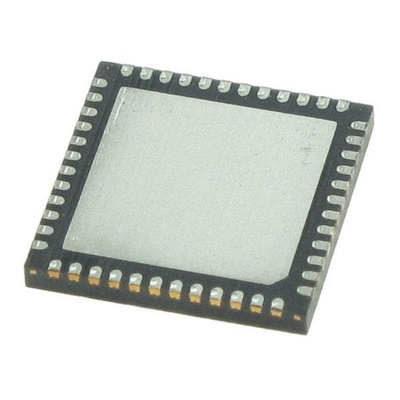

Toshiba TB67H420FTG(O,EL), Brushed Motor Driver IC 48-Pin, VQFN

The Toshiba brushed DC motor driver has sense resistor less current control. The internal H-bridge can be controlled independently, as a two brushed DC motor driver or a single stepping motor driver using the dual H-bridge mode. This IC is fabricated with the BiCD process and is rated at 50 V, 9.0 A

Supporting large current (9.0 A) and high voltage (50 V) brushed DC motor operation
Capable of driving two brushed DC motors using dual H-Bridge mode
Capable of driving one stepping motor using dual H-bridge mode
Built-in sense resistor less current control. (ACDS: Advanced Current Detection System)
Low Rds (on) MOSFETs (High side+ Low side=0.33 Ω (typ.))
Error detection features (Thermal shutdown (TSD), Over current detection (ISD), Power-on-reset (POR), and Motor load open detection (OPD))
Error detection signal output (Error Output)
Internal VCC (5 V) regulator enables the driver to be operated with a single power supply (VM)
Adjustable constant current PWM frequency using external components
Small package with thermal pad. (QFN48: 7.0 mm x 7.0 mm)

Datasheet - TB67H420FTG(O,EL)
