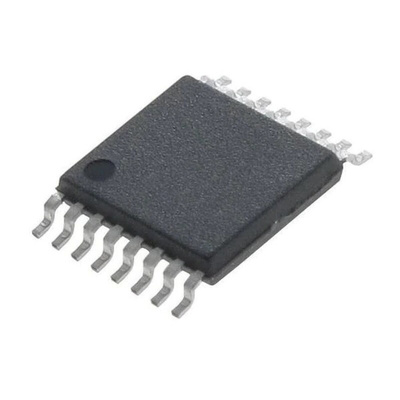

Toshiba TC78H651FNG(O,EL), DC Dual Full Bridge Motor Driver 16-Pin, TSSOP

The Toshiba 1.8-V dual bridge driver is a IC for DC motors/Stepping motors which incorporate DMOS with low ON resistance in output transistors. Forward, reverse, or stop mode can be selected. The functions such as over current detection, thermal shutdown, and under voltage lockout functions are implemented.

Power supply voltage (Absolute maximum ratings): 7.0 V (max)
Power supply voltage (Operating Range): 1.8 V to 6.0 V
Output current (Absolute maximum ratings): 1.6 A (max)
Output ON resistance: 0.22 Ω (typ.) (Ta = 25 °C, Sum of upper and lower side, VM = 5.0 V)
Built-in standby function: Consumption current 0 μA (typ.)
Built-in cross conduction protection circuit
Built-in over current detection (ISD), thermal shutdown (TSD), and under voltage lockout (UVLO)
Package: P-TSSOP16-0505-0.65-001

Datasheet - TC78H651FNG(O,EL)
