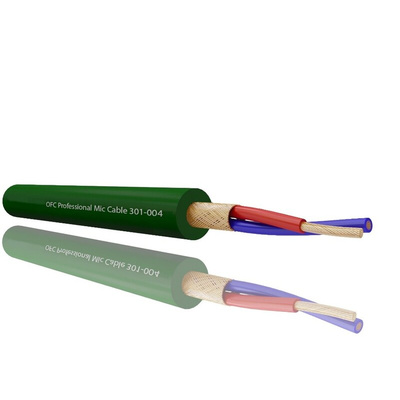

RS PRO Screened 2 Core Microphone, 0.25 mm² CSA, 6.35mm od, 100m, Green

RS PRO Multicore Microphone Cable 100m

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a two-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers, loudspeakers or amplifiers. This shielded multicore cable is engineered from pure OFC copper for optimum efficiency due to its durability resistance to shorts and long-life span as it's less likely to corrode than other wires.

Features and Benefits

• Multicore screened Cable - 2 Core


• Shielded multicore audio cable


• Outer diameter 6.35 mm


• Cross-sectional area 0.25 mm²


• XLPE insulated


• 24 AWG


• Core colours Red and Blue


• Operating voltage 30 V


• Operating temperature -20°C to +70 °C


• Conductor resistance 85 Ω


• Capacitance core to core 60 pF/m


• Capacitance core to screen 110 pF/m

Applications

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers XLPE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies. Multicore cables can be found in industrial and domestic environments such as

Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups
