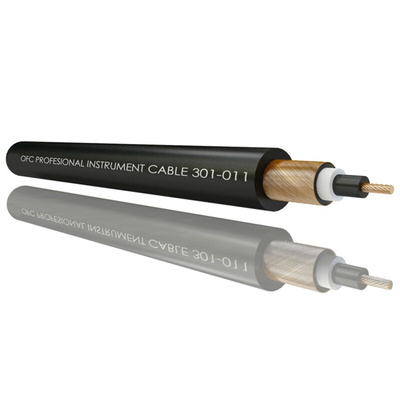

RS PRO Screened 1 Core Instrument, 0.25 mm² CSA, 6mm od, 100m, Black

RS PRO Professional Instrument Cable 100m

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a single core screened professional instrument cable that offers a unique blend of versatility, quality, and strength. The RS PRO single core instrument cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers, loudspeakers or amplifiers. This shielded single core cable is engineered from pure OFC copper for optimum efficiency due to its durability resistance to shorts and long-life span as it's less likely to corrode than other wires.

Features and Benefits

• Single core PVC jacketed cable


• Shielded single core audio cable


• Outer diameter 6 mm


• Cross-sectional area 0.25 mm²


• PE insulated


• 24 AWG


• Operating temperature -20°C to +70 °C


• Conductor resistance 84 Ω


• Capacitance core to core 99 pF/m

Applications

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers XLPE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies. Multicore cables can be found in industrial and domestic environments such as

Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
