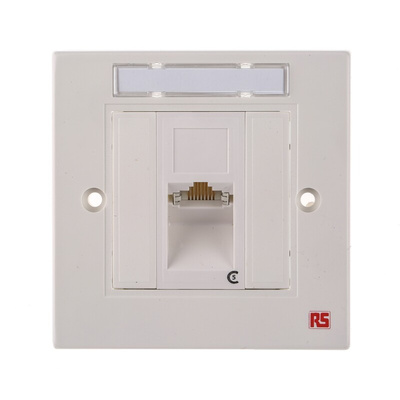

RS PRO Angled Cat5e 1 Way RJ45 Face Plate,With STP Shield Type

RS PRO Angled Cat5e 1 Way RJ45 Face Plate, With STP Shield Type

This RS PRO angled faceplate is a reliable cover plate you can use to keep your network installation outlets and cables arranged and safely covered. This unit is suitable for use with Cat5e cable type and ensures you'll have easier and safer lead access in your residential or commercial applications.

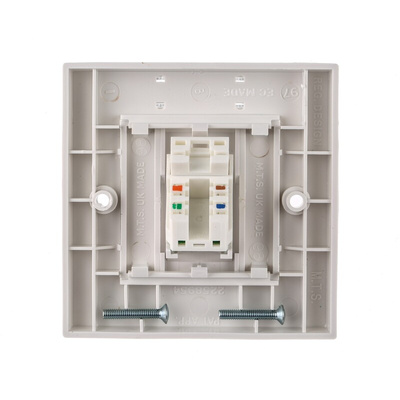

The terminations allow you to conveniently connect the wires with a punch down or IDC (Insulation Displacement Contact) tool, making sure the operation is straightforward. The terminations are also colour-coded according to T568B wiring specifications – a colour code used for wiring eight-position RJ45 modular plugs that helps you easily identify the wires.
The product is handled and packed in compliance with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) certifications that ensure the risk of discharge is minimised. It also complies with Restriction of Hazardous Substances (RoHS) criteria, so you can be sure it includes only minimal amounts of any harmful materials.

Features and Benefits

• Angled entry
• RJ45 interface type
• Cat5e LAN category
• Single outlet/single way
• STP (Single Twisted Pair) shield type
• Shuttered
• Faceplate type

RS Pro Datasheet
