T3AFG500, Teledyne LeCroy Arbitrary Waveform Generator, 2-Channel, 1 μHz Min - RS Calibrated

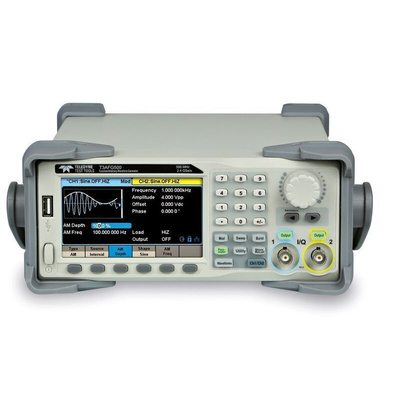

Teledyne LeCroy T3AFG500 Waveform Generator 500 MHz

Product Description

Teledyne LeCroy's new T3AFG500, 500 MHz function / arbitrary waveform generator uses advanced Digital Frequency Synthesis (DDS) technology to produce high quality standard function and arbitrary waveform signals. It also provides a wide range of analog and digital modulation functions. The T3AFG500 Arbitrary Waveform Generator has a 500 MHz bandwidth, 2.4 GSa/s sample rate, 16-bit vertical resolution and 20 Mpts of data. Common analog and digital modulations, sweep and burst are provided to support complex signal generation. The T3AFG500 also provides true dual channels with internal waveform combination, flexible phase/channel control and copy/coupling/tracking between channels. These features enable the T3AFG500 to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications. The T3AFG500 also have the added optional feature of IQ Modulation which supports more complex applications.

Features and benefits

Improved debugging – Deep memory
Wide range of modulation types
High resolutions and high bandwidth
Built in arbitrary waveforms and user defined waveforms
1% gain accuracy
High offset capability at both high and low attenuation
AC and DC coupling
ProBus active probe interface with automatic scaling

Applications

Educational demonstrations
Engineering
Debugging
Electronic design
Automotive

Datasheet - T3AFG500
