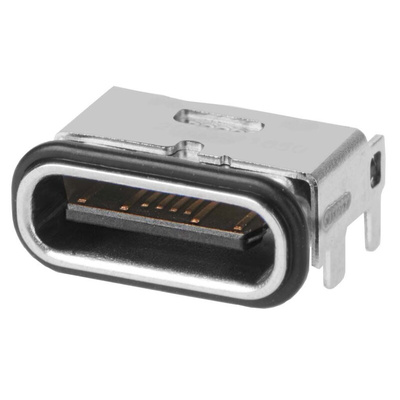

213083-0005, Molex Right Angle, SMT, Socket Type C 2.0 IPx8 USB C Connector

Molex USB C Connector, Female Gender, Surface Mount - 213083-0005

This USB C connector is a versatile and efficient solution for various applications in the automation, electronics, electrical, and mechanical industries. Designed with a right angle orientation and surface mount capability, this female connector ensures secure and stable connections for high speed data transfer.

Features & Benefits

• Allows for easy surface Mount installation
• Female connector type for versatile use
• Right angle orientation for convenient connectivity
• High speed USB type C 2.0 compatibility
• Waterproof and dustproof for added durability
• Gold (Au) plating for enhanced conductivity
• Surface Mount Compatible (SMC) for reliable performance
• Full shield for protection against interference
• Operating temperature Range 40° to +85°C
• Voltage maximum 30V AC/DC

Applications

• Ideal for Wire-to-Board applications
• Suitable for use in automation systems
• Perfect for electronic devices requiring high-speed data transfer
• Designed for PCB applications that require a waterproof solution
• Excellent for applications where secure and durable connections are needed

Can it operate in extreme temperatures?

Yes, this USB C connector can operate in a temperature range from -40°C to +85°C.

Will it provide a secure connection for high-speed data transfer?

Yes, the right angle orientation ensures a stable connection for efficient data transfer.

Is it suitable for surface mount installations?

Yes, this connector is designed for surface mount applications for easy and secure installation.

Can it be used in automation systems?

Yes, this female USB C connector is ideal for use in automation systems requiring reliable connectivity.

Does it come with gold plating for enhanced conductivity?

Yes, the connector features Gold (Au) plating for improved signal transmission.
