B-STLINK-ISOL Power Management Function, STMicroelectronics B-STLINK-ISOL Isolation and Voltage Adapter Board for STLINK-V3SET Power Management for STLINK-V3SET

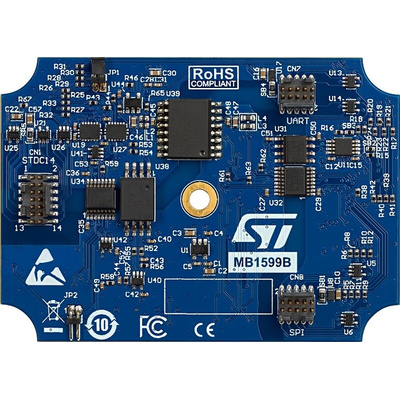

The STMicroelectronics B-STLINK-ISOL board is an additional module for STLINK-V3SET, performing galvanic isolation and voltage adaptation for STM32 microcontroller targets running below 3.3 V down to 1.65 V. The module can be enclosed directly in the original STLINK-V3SET casing, when used as an STM32 debugging probe (JTAG/SWD/SWV/VCP) through the STDC14 connector. It can be also inserted between the STLINK-V3SET main board (MB1441) and its adapter board (MB1440) when providing access to bridge signals and other connectors.
Input/output isolation and level shifters for STM32 debug SWD, SWV, and JTAG signalsInput/output isolation and level shifters for VCP Virtual COM port (UART) signalsInput/output isolation and level shifters for bridge (SPI/UART/I2C/CAN/GPIOs) signals
