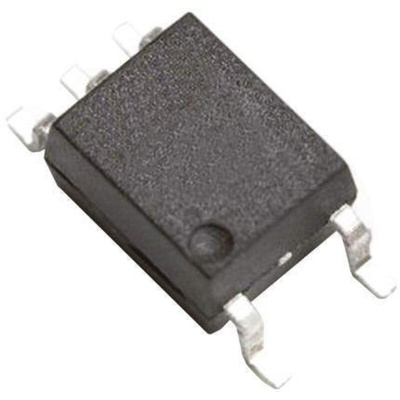

ACPL-M61T-500E Mounting Type, Broadcom, ACPL-M61T-500E DC Input Transistor Output Optocoupler, Surface Mount, 5-Pin SO

944
The Broadcom ACPL-M61T, AEC-Q100 compliant, optically coupled gates combine an AlGaAs light emitting diode and an integrated high gain photo detector. The output of the detector IC is an Open-collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 15,000 V/μs at VCM=1000V. This small outline wide operating temperature, high CMR, high speed, logic gate optocoupler is a single channel device in a five lead miniature footprint. This optocoupler is suitable for use in automotive high speed communications logic interfacing with low propagation delays, input/output buffering and is recommended for use in high operating temperature environment.
High Temperature and Reliability CANBus communication interface for Automotive ApplicationWide Temperature Range: -40°C ∼ 125°CHigh Speed: 10MBd (Typical)Low LED Drive Current: 6.5mA (Typ)Low Propagation Delay: 100ns (max)
