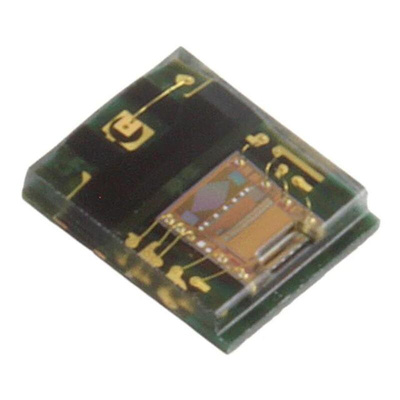

AEDR-8723-102 Encoder Reading, AEDR-8723-102 | Broadcom Optical Encoder, Surface Mount

595
The Broadcom AEDR-872x is a 3-channel reflective optical encoder device providing dual channel analog outputs and an index channel digital output. The differential analog outputs (Sin, /Sin, Cos, /Cos) can interface directly with most commercially available interpolator devices for high precision motion control measurements. As such, the device provides great design-in flexibility and can enhance the performance of existing motion control system.
3 Channel OutputsDual Channel Analog OutputsIndex Channel Digital OutputBuilt-in Automatic LED Current RegulationEncoding Resolution: 318 LPI
