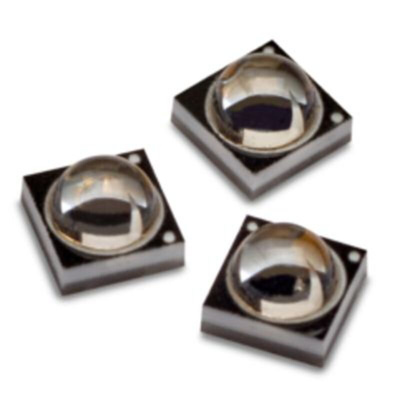

AUV3-ST32-0SV0K Broadcom, AUV3 Series 3 UV LED, 395nm 1460mW 35 °

978

The Broadcom 3W 3535 surface mount UV LEDs are energy-efficient LEDs that can be driven at high driving current and can dissipate heat efficiently, resulting in higher reliability. Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are packaged with ceramic-based materials, and the quartz lens on top of the package provides the product longevity needed for the respective end applications. The 3W 3535 Surface Mount UV LEDs are compatible with the reflow soldering process. To facilitate easy pick-and-place assembly, the LEDs are packed in tape and reel. Each reel is shipped in single flux and single colour bin to ensure close uniformity.

High-reliability package with quartz encapsulation
High-radiant flux output using InGaN dice technology
Available in 360-nm to 400-nm wavelength range
Available in 35o and 60o viewing angles
Compatible with the reflow soldering process
JEDEC MSL 2

Datasheet - AUV3-ST32-0SV0K
