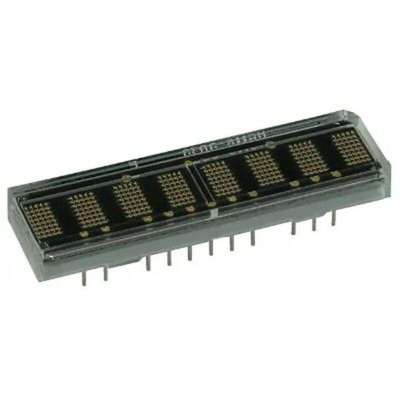

HDSP-2133 Broadcom 8 Digit Dot Matrix LED Light Bar, 5 X 7 Dot Matrix Green 7.5 mcd 5mm

Eight Char 5.0 mm (0.2 inch) Glass/Ceramic Smart 5 x 7 Alphanumeric Displays for Military Apps

The Broadcom HDSP-2133 is eight digit, 5x7 dot matrix, alphanumeric displays. The 5.0mm high characters are packaged in a standard 7.64mm, 32 pin DIP. The on board CMOS IC has the ability to decode 128 ASCII stored in ROM. In addition, 16 programmable symbols may be stored in an on board RAM. Seven brightness levels provide versatility in adjusting the display intensity and power consumption. The HDSP-2133 is designed for standard microprocessor interface techniques. The display and special features are accessed through a bidirectional eight-bit data bus. These features make the HDSP-2133 ideally suited for applications where a hermetic, low power alphanumeric display is required.

Smart Alphanumeric Display
On-Board CMOS IC
Built-In RAM
ASCII Decoder
LED Drive Circuitry
128 ASCII Character Set
16 User Definable Characters
Programmable Features
Individual Character Flashing
Full Display Blinking
Multi-Level Dimming and
Blanking
Self Test
Clear Function
Read/Write Capability

Datasheet - HDSP-2133
