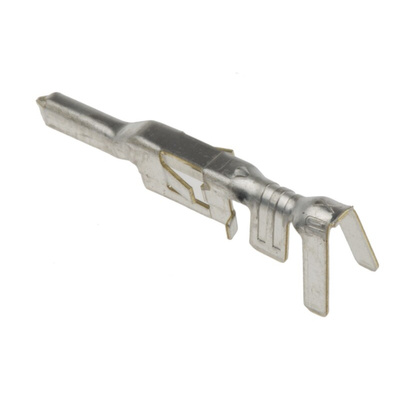

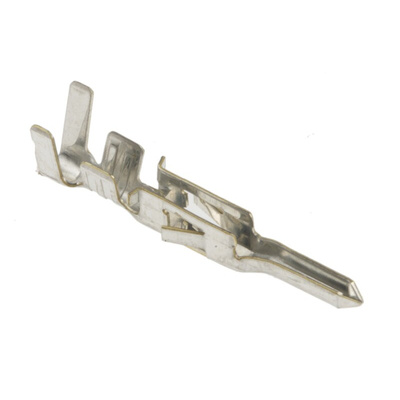

39-00-0082, Molex MINI-FIT Series, 5558 Series Number, Crimp Terminal, Male, 16AWG to 16AWG, Tin over Copper Plating, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Mini-Fit Male Crimp Terminal, 16AWG, 10mΩ - 5558 Series - 39-00-0081

This sturdy crimp terminal from Molex makes reliable electrical joins to connectors in the Mini-Fit and Mini-Fit Jr ranges. It accommodates wires up to size 16AWG (American Wire Gauge) and features multiple points of contact for high current-carrying capacity. The brass contacts are built for long-lasting performance and are plated in tin for better conductivity, resulting in a strong connection and effective current transmission. Locking tangs secure the wires into place so your connection isn't lost if subjected to vibrations or shock.

• Maximum contact resistance of 10mΩ (milliohms) enables high current flow for more efficient connections
• Wide operating temperature range of -40°C to +105°C means it'll work in harsh industrial conditions
• Maximum current capacity per contact of 9A (amperes) offers flexibility with your setup

Applications

• Consumer electronics
• Automotive industry
• Industrial automation
• Communications and data transmissions

What are the benefits of a crimp connection?

A crimp electrical connection creates an airtight join, so moisture and oxygen won't cause corrosion. It's also a mechanically strong join, so it can withstand rough handling.

Molex Minifit Jr.™ Series

Datasheet

Drawing

Molex Mini-Fit Connector Datasheet
