F09S-K700 / 1731100011, FCT from Molex 9 Way Panel Mount D-sub Connector Socket, Разъем

Plug & Socket (for cable mounting)

Solder bucket 'D' plugs and sockets to be used as part of a waterproof cable connection in conjunction with the plastic and metallised hoods (stock no. 195-7187). These may then mate with the panel mounted D plugs and sockets (stock no. 195-7250) or with each other as part of an in-line cable assembly, using the relevant in-line adaptor kit (stock no. 246-6064 to stock no. 246-6086) to maintain IP67 rating.

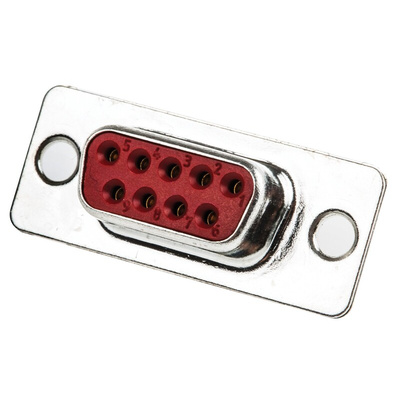

FCT from Molex D-Sub Connector, 9 Way, 5A Current Rating - F09S-K700 / 1731100011

Keep your D-sub connections secure in demanding environments with this connector socket by FCT from Molex. It has an IP67 rating, indicating full protection against dust and submersion in 1m of water for up to 30 minutes. The socket holds nine female contacts for compatibility with many standard D-sub connectors. Its gold-over-nickel-plated copper alloy contacts ensure good conductivity and resistance to corrosion, so it supports reliable electrical connections.

• Tin-over-nickel-plated brass housing for durability and resistance to corrosion
• Solder cup termination for secure installation
• Wide operating temperature range of -25°C to +70°C for use in demanding conditions

Applications

• Communication towers
• Food processing
• Marine and offshore industries

What's the current rating of this connector?

This connector has a current rating of 5A, making it suitable for use in high-powered applications.

Waterproof (IP67) 'D'

Suitable for military, industrial or commercial applications and computer interfacing etc.

Waterproof Connector Systems - General Information

Waterproof D-Sub Connectors, detailed

Waterproof D-Sub Connector Solutions - Datasheet

FxxS-K700 Drawing
