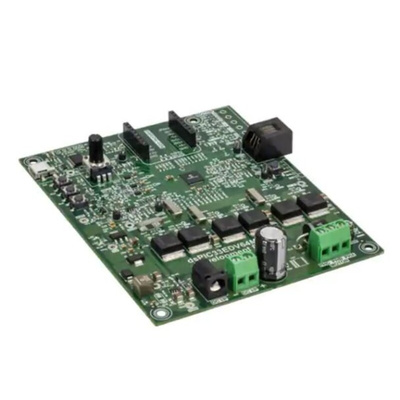

The Microchip dsPIC33EDV64MC205 Motor Control Development Board is designed to demonstrate the features of the dsPIC33EDV64MC205 System in Package (SiP). This dsPIC® DSC is a 16-bit Digital Signal Controller featuring high-speed PWM, op amps, advanced analogue integrated with a 3-phase MOSFET gate driver. This board is targeted to drive a low-voltage three-phase Permanent Magnet Synchronous Motor or Brushless DC motor (PMSM/BLDC motor). The board comes programmed to run dual-shunt FOC with PLL estimator using the Hurst BLDC motor as the out of the box demo.
Three-Phase Motor Control Power Stage with the Following Electrical
Input DC voltage: 10V to 24 VDC
Nominal phase RMS current: 10A at +25°C
Motor Phase Current Sensing to Implement Field-Oriented Control of a PMSM/BLDC Motor (single/dual/three phase)
DC Bus Current Sensing for Over-current Protection using an on-chip op-amp and comparator
DC Bus Voltage Sensing
Datasheet - DM330027| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
