PD-IM-7604-4T4H, Microchip PSE BT Power Over Ethernet (POE) for PD69200, PD69204T4, PD69208T4 for PD69204T4 & PD69200, PD69208T4

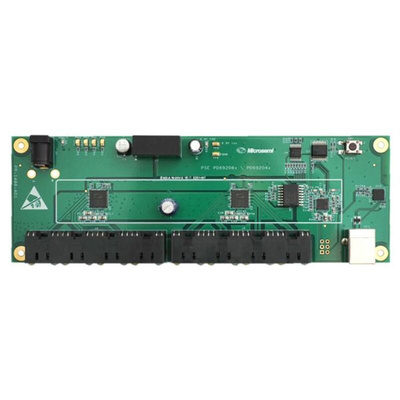

The Microchip PD-IM-7604-4T4H evaluation board is developed based on PD69208T4, PD69204T4 and PD69200 chipsets, and demonstrates the operation of four 4-pair ports and four 2-pair ports systems. The evaluation system provides designers with the required environment to evaluate the performance and implementation of PD69204T4 (four ports) and PD69208T4 (eight ports) PoE managers and PD69200 PoE controller. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with flexibility and easy configuration.

Featuring PD69208T4, PD69204T4, PD69200
IEEE 802.3af/at/bt/PoH standard compliant
4 x 2-pair + 4 x 4-pair Type4 ports
Supporting 4 x 45W + 4 x 90W ports
LED Stream
