PD-IM-7608M, Microchip PSE AT Power Over Ethernet (POE) for PD69200, PD69208M for PD69200, PD69208M

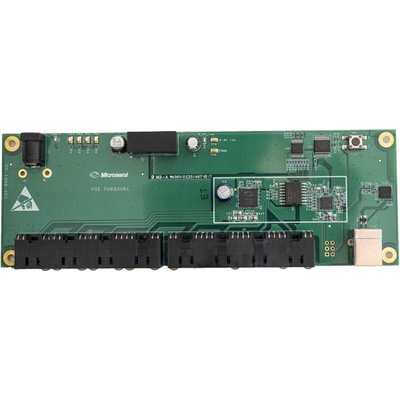

The Microchip PD-IM-7608M evaluation board is developed based on PD69208M and PD69200 chipsets. PD-IM7608M demonstrates the operation of eight 2-pair ports systems
for 4-pair systems, refer to the PD-IM7604+4MH or PD-IM-7604+4T4H evaluation boards. Microchip's PD69208M Power over Ethernet (PoE) manager IC integrates power, analogue, and state-of-the-art logic into a single 56-pin, plastic QFN package.

Featuring PD69208M, PD69200
IEEE 802.3af/at/bt Type3 standard compliant
8 ports
Supporting 8 x 30W / 4 x 60W ports
LED stream
UART / USB host interface
Two gangs (each contains 4 RJ45 connectors)

Datasheet - PD-IM-7608M
