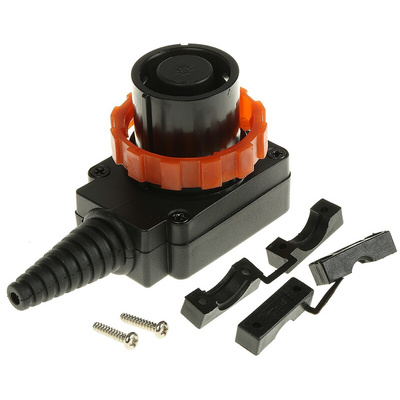

RS PRO Right Angle Cable Mount Loudspeaker Connector Plug, 8 Way, 15A, Screw Down, Solder Termination, Разъем

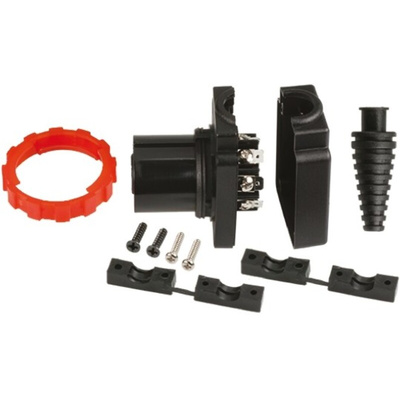

Touchsafe Plugs and Sockets, 8 Pole

Brought to you under the trusted RS Brand, this connector is intended for high power applications that require a reliable locking touch-proof connector system. The 8-pole plug and socket have similar features to the 4-pole version, but offer a 90° plug. A highly versatile connection system, Touchproof plug and sockets are often used in audio/amp systems, lighting and security systems and are also suitable for instrumentation, motor control systems and leisure industries. This 8-way Touchproof connector is keyed to prevent mis-mating, and is not compatible with standard versions.

Features and Benefits:
• Touchproof contacts to IEC65/IEC348
• Polarised
• Easy locking/unlocking
• Push-on (panel socket) and screw/solder (plug) terminations
• Built-in cable clamp
• 6mm to 15mm diameter cable accepted
• Keyed to prevent mis-mating
• 20 A rms (cont. per contact)
• 15 A rms @ 20° C
• 10 A rms @ 80° C

RS Pro Datasheet
