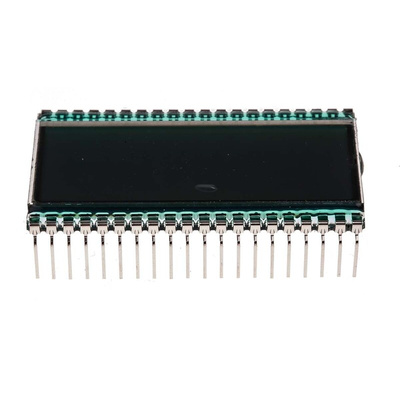

RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 3-1/2 Characters, Reflective, Дисплей

Direct-Drive 7-segment, Reflective & Transflective

Reflective,The reflective types are suitable for use in sunlight and low-light applications. Viewing is enhanced by direct sunlight. Transflective,The transflective types have the ability to be backlit making them ideal for use in low-light or no-light conditions. Suitable LED backlight panels are available: Refer to Accessories range.

Extremely low-power
Ideal for battery-powered equipment
Standard 7-segment format with inter-digit decimal points and alternate inter-digit colons
Black segments on a silver background
Wide viewing angle

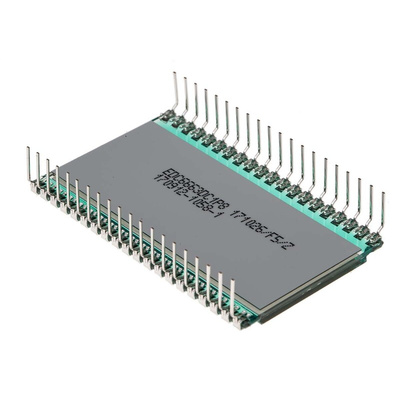

Supplied as a flat glass plate with rigid pins in a DIL package format

Caution

Observe ANTI-STATIC precautions when storing or handling these LCD modules.

RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 3-1/2 Characters, Reflective

Use this RS PRO transflective display with your battery-powered devices. It's an efficient choice as it requires very little power, and its LED backlight provides good visibility in low-light or dark settings.


This unit is supplied as a flat glass plate with rigid pins in a DIL (dual in line) format, meaning it consists of two parallel rows of electrical connecting pins in a rectangular housing. The LCD (liquid crystal display) features a standard 7-segment format, including inter-digit decimal points and alternate inter-digit colons. For ease of reading, the black segments appear against a silver background. The wide viewing angle also makes the display highly visible.


You can use this digital display for a broad range of battery-operated applications. It's important to reduce static when handling or storing LCD units like this one.

Features and Benefits

• TN display matrix technology


• Transflective display mode


• 7-segment display type


• Single row of characters


• 3-1/2 characters per row


• Character dimensions of 12.7 (height) x 7 mm (width)


• Viewing area dimensions of 18.8 (height) x 47 mm (width)


• External dimensions of 30.5 (height) x 50.8 (width) x 2.9 mm (depth)


• Grey background colour


• Black illumination colour


• Operating temperature range of -30°C to +80°C
