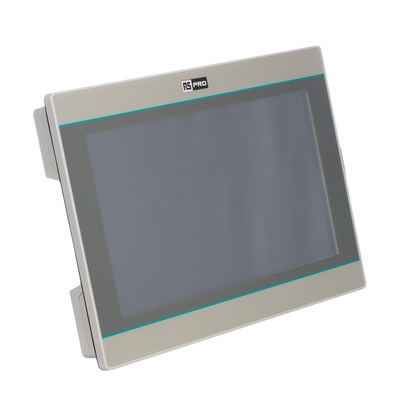

RS PRO Touch Screen HMI - 10.2 in, TFT LCD Display, 1024 x 600pixels

RS PRO Touchscreen HMI Displays

RS PRO is proud to introduce a range of HMI display units used to monitor machines, perform tasks and visualise operational status. These HMI display screens are available in 7in and 10.2in, can be panel mounted or used as a stand-alone device, offer quick boot-time, fluent touch-screen, and excellent communication stability. Each version is a joy to use, the graphics are brilliant with easy selection options plus built-in ethernet to support a variety of networks.

Processor Cortex A7

Our HMI display units are powered by the impressive Cortex A7 processor. It delivers more single-thread performance and visualisation support in hardware. Cortex A7 is a world-class CPU ideal for HMI solutions and delivers similar performance to the Cortex A9 at higher power levels.

Features and Benefits

• Large capacity library


• Enhanced software security


• Less boot-time


• Better waterproof and cooling


• Fast screen update


• Faster screen switch


• Fluent touch


• Improved communication stability


• Touchscreen HMI displays

Specification

• Display: Colour


• Display Type: TFT

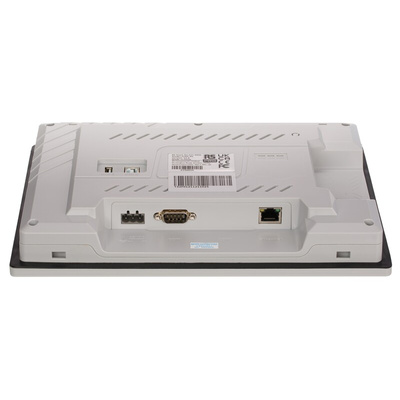

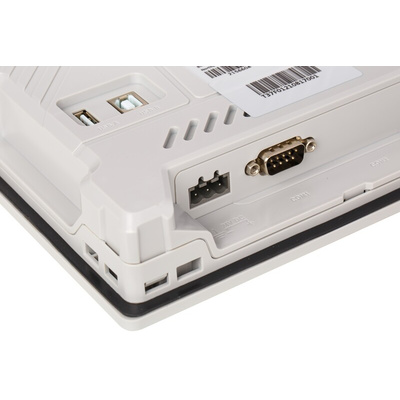

• Interface: USB/ Ethernet


• Memory: 128M FLASH, 128M DDRAM


• Backlighting


• Supply Voltage: 24 VDC


• Operating Temperature: -10 °C to 60 °C


• IP65

Dimensions

• 7 in. colour display: 201 x 147 x 39 mm


• 10 in. colour display: 272 x 192 x 41.5 mm

RS PRO Touchscreen HMI Display Variants

• 7 in screen, USB interface; RS stock no: 215-6604


• 7 in screen, ethernet interface; RS stock no: 215-6605


• 10.2 in screen, ethernet interface; RS stock no: 215-6606

Application

• Industrial and Commercial Environments


• Process control systems


• Information solution


• Air-traffic control

FAQ’s

What does HMI mean?
HMI means 'human-machine interface'.

What is their purpose?
Intended to streamline the use of machinery by connecting personnel to machines or systems. Common applications include connecting to PLCs, RTU's and IEDs, their purpose is to provide a visual performance of machines and their progress.

Note

Software download available here

RS PRO Datasheet

RS PRO HMI Editor User Manual
