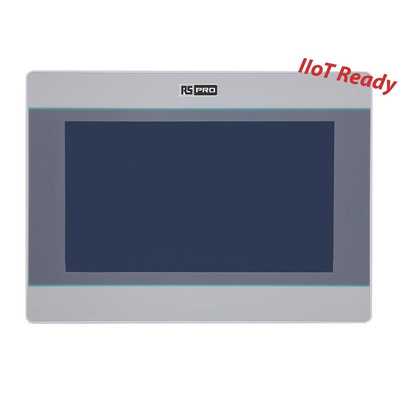

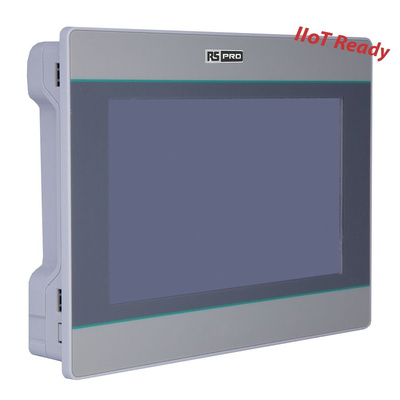

RS PRO Touch Screen HMI - 7 in, TFT LCD Display, 800 x 480pixels

RS PRO Touch-Screen HMI Display - 7 in, Advanced TFT Display, 800 x 480pixels

RS PRO is proud to introduce this high-performing HMI display used to monitor machines, perform tasks and visualise operational status. This HMI offers a 7-inch control panel screen, can be used as a stand-alone device, offer multi-communication ports, a fluent touch-screen, and excellent communication stability. This HMI is a joy to use, puts you in control, offers superb graphics with easy selection options plus built-in ethernet to support a variety of networks.

Processor Cortex A8

The Cortex A8 processor is a high-performing low-power 32-bit processor. It has dual-issue capability and high-frequency configurations. Delivers great performance and visualisation support in hardware, perfect for HMI display solutions.

Cortex A8 CPU

• Flash 4 GB EMMC


• 32G SD card, 64G USB supported


• Ethernet, CAN bus, USB2.0


• Ethernet, CAN bus, USB2.0 (USB Host; USB Client) port supported

Features and Benefits

• Display: Colour 7 inch


• Display Type: TFT LCD


• USB, Ethernet


• Memory: DDRIII 512M


• Backlighting


• Supply Voltage: 24 VDC


• Operating Temperature: -10 °C to 60 °C


• IP65


• Support Remote Control and Lua Script

Specification

• Hardware: CORTEX A8 600MHZ CPU, DDRII 512MB RAM, 2GB FLASH


• Resolution: 800 x 480 TFT LCD, 16,000k colours


• Interface: RS232/RS485/RS422 (5 COM ports available)


• Storage: Support Date Storage, SD Card, U Disk


• Mobile apps support, Cloud monitor support, Multiple users, communication encrypted


• Programmed by PIStudio

Application

• Industrial and Commercial Environments


• Process control systems


• Information solution


• Air-traffic control

FAQ’s

What does HMI mean?
HMI means 'human-machine interface'.

What is their purpose?
Intended to streamline the use of machinery by connecting personnel to machines or systems. Common applications include connecting to PLCs, RTU's and IEDs, their purpose is to provide a visual performance of machines and their progress.

Note

Software download available here

RS PRO HMIEditor User Manual

RS PRO Datasheet
