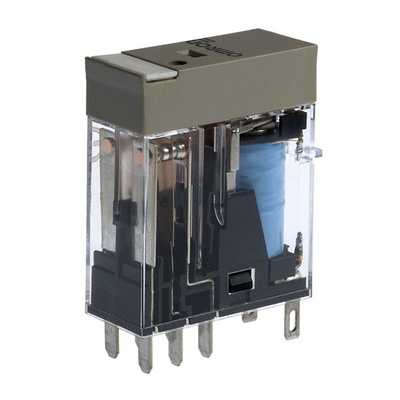

G2R-2-SN-AP3 DC24(S), Omron Plug In Latching Non-Latching Relay, 24V dc Coil, 5A Switching Current, DPDT

OMRON Non-Latching Relay, 1113Ω Coil Resistance, 2 Poles - G2R-2 Series - G2R-2-SN-AP3 DC24(S)

For a reliable connection in small spaces, spark up your motor controls using this non-latching relay from OMRON. It slots easily into tight work setups thanks to a slim design with dimensions of just 41.7 (H) x 13 (W) x 29mm (D).As it has a 5A switching current, you can use the unit to manage electrical loads in lighting systems. Transparent housing makes it a breeze to inspect the internal components at a glance. And with a simple plug-in design, installation is trouble-free.

Features & Benefits

• Suitable for use in harsh conditions, thanks to an operating temperature range between -40°C and +70°C
• Puts minimal burden on electrical equipment with a light weight of 20g
• Operating frequency up to 18,000 mechanical operations per hour, so keeps up with fast-paced systems
• Built-in operational indicator for easy monitoring

Applications

• Solar energy generation
• Heating and ventilation systems
• Industrial cleaning equipment

What contact configuration does this relay have?

As a double-pole, double-throw (DPDT) relay, the device separates pairs of electrical circuits so that you can control two motors independently from a single unit.

Datasheet-G2R-2-SN-AP3 24VDC (S)

Brochure - Industrial Relays
