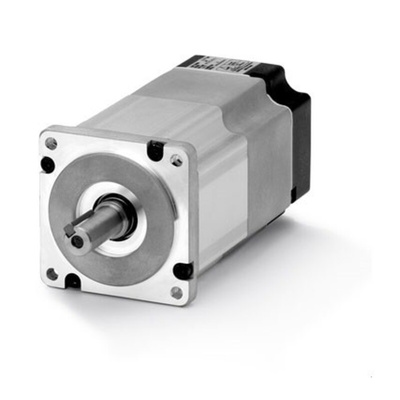

R88M-G05030H-S2-D, Omron G-Series Servo Motor, 50 W, 1 Phase, 230 V

The Omron professional range of G series servo motor provides wide range of compact servo motors and designed to meet all application needs. When used with a SmartStep 2 drive, the G-series servo motors offer the simplicity and cost-effectiveness of a stepper. These servo motors have the added advantages of a servo system. This G series cylinder type AC servo motor has incremental encoder, tap without brake and circular connector. It has 0.16 Nm rated torque, 3000 rpm speed and 50 W power capacity. It operates on 230 VAC single phase.

Peak torque 300% of continuous torque during
3 seconds or more depending on model
Servomotors supported by SmartStep2, G-Series
and Accurax G5 servo drives
Cylindrical and flat servomotors types are available
Encoder accuracy of 10,000 step/rev as standard
and 17-bit ABS encoder as optional
IP65 as standard and shaft oil seal available
Motors with brake as option

Datasheet - R88M-G05030H-S2-D
