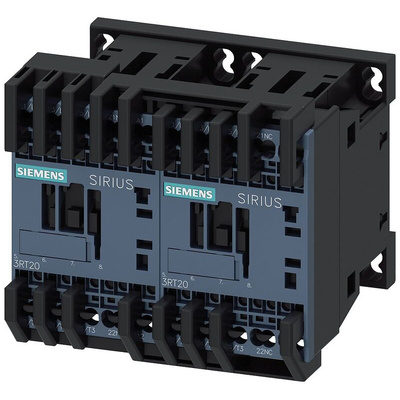

3RA2315-8XB30-2AP0, Siemens Reversing Contactor, 230 V ac Coil, 3-Pole, 7 A, 3 kW, 3NO

The Siemens 3RA23 is reversing contactor assembly AC-3,3 kW/400 V,AC230V,50/60 Hz 3-pole, is a proven and factory-fitted combination of two 3RT2 contactors of the same output which are already fully wired and are interlocked both mechanically and electrically. They are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. The 3RA23 reversing contactor assemblies are available with AC and DC actuation in sizes S00 to S3. They are offered with screw or spring-loaded terminals for mounting on DIN rails or screw mounting. It has S00, Spring-type terminal electrical and mechanical interlock Reversing contactor assembly for switching motors including change of rotation direction.

The 3RA23 reversing contactor assemblies will replace the proven 3RA13 series.
Simple, efficient and always up to date - SIRIUS modular system.
The accessories of the 3RT2Â contactors are standard for all sizes and can also be used for the contactor assemblies.

Datasheet - 3RA2315-8XB30-2AP0
