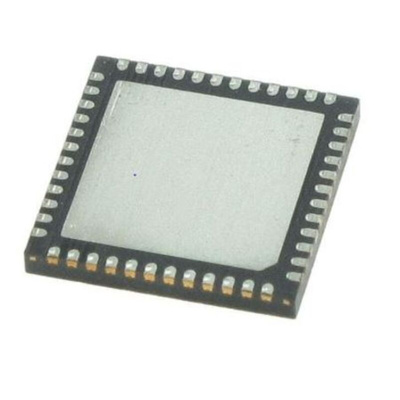

Renesas Electronics 6V49205BNLGI, Clock Generator, 48-Pin VFQFN

The Renesas Electronics 6V49205B is a main clock for Freescale P10xx and P20xx-based systems. It has a selectable System CCB clock and 2 DDRCLK speeds – 100M or 66.66M. The 6V49205B also provides LP-HCSL PCIe outputs for low-power and reduced board space.

Replaces 11 crystals, 2 oscillators and 3 clock generators

lowers cost, power and area
Integrated terminations on LP-HCSL PCIe outputs

eliminate 24 resistors, saving 41mm2 of board area
Industrial temperature range operation
supports
demanding environmental conditions
Advanced 3.3V CMOS process
high-performance,
low-power
Supports independent spread spectrum on
Sys_CCB/DDRCLK and PCIe outputs
Available in space-saving 7 x 7 mm 48-VFQFPN with
0.5mm pad pitch
reduced board space without the need for
fine-pitch assembly techniques

Datasheet - 6V49205BNLGI
