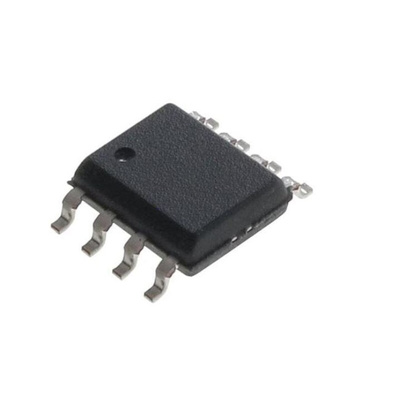

Renesas Electronics 74FCT38072DCGI, Clock Buffer CMOS, 1-Input, 8-Pin SOIC

The Renesas Electronics FCT38072 is a 3.3V clock driver built using advanced CMOS technology. This low skew clock driver offers 1:2 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

Advanced CMOS Technology
Guaranteed low skew < 100ps (max.)
Very low duty cycle distortion< 350ps (max.)
High speed propagation delay< 3ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
1:2 fanout
Maximum output rise and fall time < 1ns (max.)
Low input capacitance: 3pF typical
VCC = 3.3V ± 0.3V
Inputs can be driven from 3.3V or 5V components
Operating frequency up to 166MHz

Datasheet - 74FCT38072DCGI
