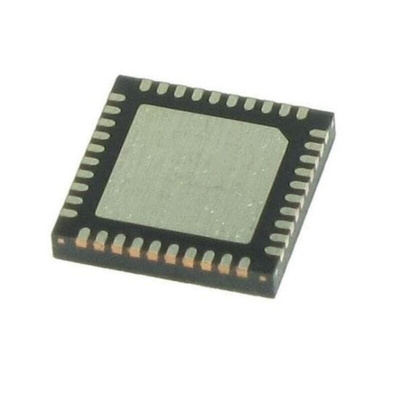

Renesas Electronics 8T49N241-999NLGI, Clock Generator, 40-Pin VFQFN

The Renesas Electronics 8T49N241 has one fractional-feedback PLL that can be used as a jitter attenuator and frequency translator. It is equipped with one integer and three fractional output dividers, allowing the generation of up to four different output frequencies, ranging from 8kHz to 1GHz. These frequencies are completely independent of each other, the input reference frequencies, and the crystal reference frequency. The device places virtually no constraints on input to output frequency conversion, supporting all FEC rates, including the new revision of ITU-T Recommendation G.709 (2009), most with 0ppm conversion error. The outputs may select among LVPECL, LVDS, HCSL or LVCMOS output levels.

Supports SDH/SONET and Synchronous Ethernet clocks including all FEC rate conversions
0.35ps RMS Typical Jitter (including spurs): 12kHz to 20MHz
Operating Modes: Synthesizer, Jitter Attenuator
Operates from a 10MHz to 50MHz fundamental-mode crystal or a 10MHz to 125MHz external oscillator
Initial holdover accuracy of +50ppb.
Accepts up to 2 LVPECL, LVDS, LVHSTL or LVCMOS input clocks
Accepts frequencies ranging from 8kHz to 875MHz
Auto and manual clock selection with hitless switching
Clock input monitoring including support for gapped clocks
Phase-slope limiting and fully hitless switching options to control output clock phase transients
