Festo VLG-4-1/4 Pulse Generator, 50 Hz min, 50Hz max

Festo Pulse Generator, 50Hz Frequency - VLG-4-1/4

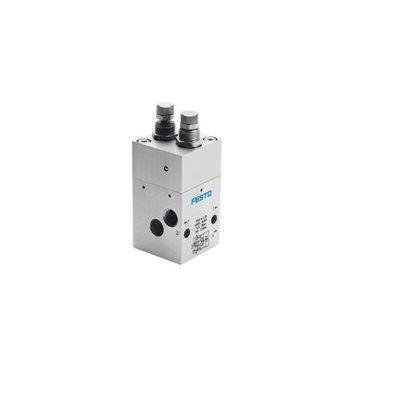

This Festo pulse generator uses a variable oscillator to create adjustable duration signals in industrial control operations. Both the duration and frequency of the unit's signal can be independently adjusted. This makes it a versatile choice that's useful in pneumatic systems requiring rapid vibrating motion. The generator features a poppet valve for a higher flow rate and is easy to mount using the through-holes in the housing.

• Operating pressure range of 4 to 10 bar allows for effective operation in pressurised environments
• Offers optimal functionality in temperatures ranging from -10°C to +60°C
• Standard connection size of 1/4G for easy fitting
• Maximum and minimum frequency of 50Hz
• Nominal flow rate of 600L/min for reliable industrial use

Applications

• Conveyor systems
• Food processing
• Pharmaceutical manufacturing

How does a poppet valve work?

A poppet valve like this one uses a ball and seat to control the direction and timing of flow in a pneumatic system. It combines the function of a check valve and the versatility of a directional valve. This means it's an efficient solution, with reliable response times and low maintenance requirements.

Datasheet - VLG-4-1/4
