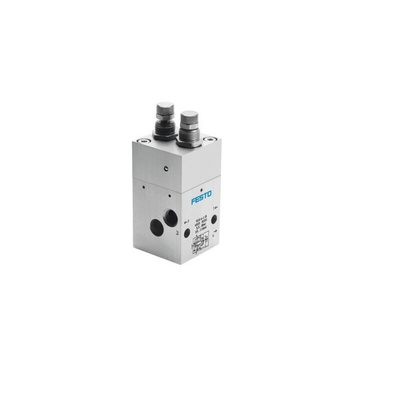

Festo VLG-4-1/8 Pulse Generator, 15 Hz min, 30Hz max

Festo Pulse Generator, 15 to 30Hz Frequency, 3.5 to 10 Bar Operating Pressure Range - VLG-4-1/8

Do you need to see how your electronic devices hold up when subjected to vibrating motion? This pulse generator from Festo uses compressed filtered air to produce adjustable duration signals so you can test your systems under controlled conditions. It operates using a poppet valve to open and close the cylinder and control the flow of air. This adjusts outputs such as pulse delay and repetition rate. You can use the pulse generator to create electronic signals in digital and analogue forms to monitor pulse parameters like amplitude, width of the waveforms or triggering.

Features & Benefits

• Through-holes for straightforward and quick mounting
• Wide frequency range of 15 to 30Hz for versatility
• Broad operating pressure range between 3.5 to 10 bar so you can rest assured it's suitable for industrial environments

Applications

• Testing equipment
• Mechanical engineering
• OEM and networking systems

What's the difference between digital and analogue pulse generators?

Most pulse generators create digital and analogue stimulus techniques to achieve the desired output. Which one you choose will depend on the parameters you need to measure.

Datasheet - VLG-4-1/8
