3517/20, 3M 3517 Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 5m Length, Ленточный кабель

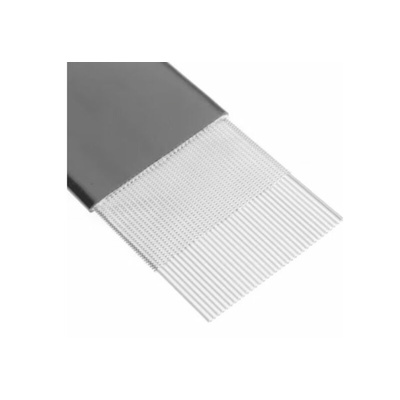

3M Screened & Jacketed 1.27mm Pitch Ribbon Cable - Type 3517

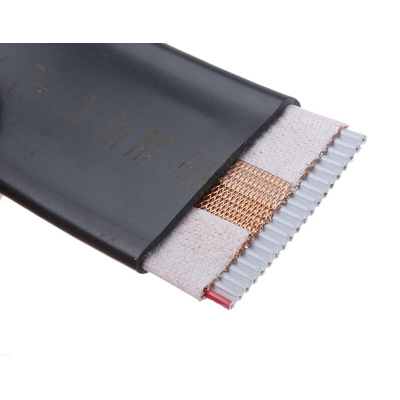

From 3M, this screened & jacketed ribbon cablehas parallel stranded tinned copper wire conductors. It is wrapped in shielding and protected with an outer black PVC jacket.

Features and Benefits

• 360° copper shielding
• Primary cable is zippable for branching or discrete terminations

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

Approvals

UL Listed

Standards

UL style 2912

3M Ribbon Cable, Screened Type, 28AWG Stranded Wire - 3517 Series - 3517/20

Tie up your data connections with this ribbon cable from 3M. As it's flat and flexible, routing it through narrow or awkward spaces is a cinch. It has 20 ways, enabling you to create multiple connections with just one cable. Both ends are left unterminated, giving you the flexibility to attach an IDC connector that best suits your job. A layer of expanded, conductive copper shields it from noise and interference.

• Wide operating temperature range between -20°C and +80°C to handle harsh conditions
• Tinned and stranded copper conductors keep it flexible and reliable
• PVC jacket is resistant to chemicals and corrosion

Applications

• Audio-visual equipment
• Computer peripherals
• Instrumentation devices
• Industrial automation

How long is this ribbon cable?

This ribbon cable comes in a length of 5 metres, giving you the freedom to route wires over long distances. Alternatively, cut it to size and make multiple short connections.

Approvals

UL VW-1 UL 2912

Screened and Jacketed Ribbon Cable

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.

UL E118773

Datasheet

Cable Selection Guide
