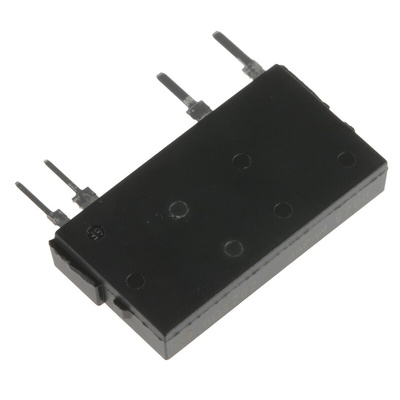

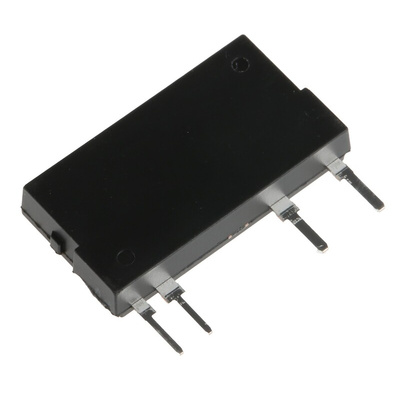

AQZ202, Panasonic Solid State Relay, 3 A Load, PCB Mount, 60 V Load, 5 V dc Control, Реле

AQZ202 and AQZ204 solid state photoMOS relays

Optoelectronic photoMOS relay with MOSFET output stage with SIL casing.
Applications: telephone and measuring equipment, high-speed communication systems and industrial robots.

Approvals

UL and CSA

Panasonic Solid State Relay

The Panasonic 3A SSR PCB mount solid state relay is a high capacity power PhotoMos relay. It is actuated with the help of a 60VDC coil and up to 3A DC/AC current through the coil for the relay to switch its positions. This relay has palladium-nickel contact for high electrical endurance.

Features and Benefits

• Environmental friendly product
• Isolation voltage between the coil and contacts is 2.5KV
• Service temperature range between -40°C and 85°C
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• No need to add power supply to drive the relay
• Simplified PCB layout
• Efficiently controls low level analogue signals
• Counter electromotive protection diode not required

Applications

• Used as a control device
• Automotive industry
• High speed inspection machines
• Industrial machinery and control
• Telecommunication
• Machine tools
• Industrial robots
• IC checker

Certifications

• UL certified
• CSA certified

Power PhotoMOS Relays 1-Channel (Form A) Type AQZ
