ADM01104 Power Management Function, Microchip ADM01104 MCP6C02 Evaluation Board High-Side Current Sensing for MCP6C02 for Power Supply

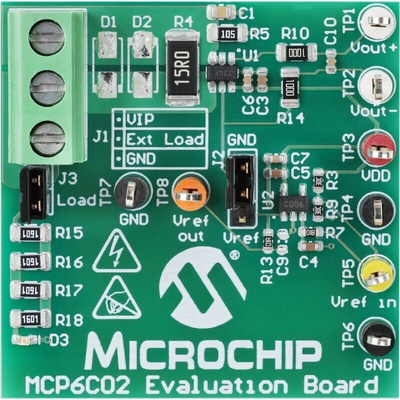

The Microchip MCP6C02 evaluation board demonstrates the performance of Microchip MCP6C02 high-side current sense amplifier. A load is supplied on the board for a convenient demonstration of the evaluation board. Supplying power and a load to the evaluation board will produce a small, measurable voltage drop across a shunt resistor on the evaluation board. This voltage drop is then amplified by the MCP6C02 on the board and outputted differentially at the test points: VOUT+ and VOUT- (TP1 and TP2).
Fully populated evaluation board provides for a variety of configuration optionsThe evaluation board features the MCP6C02T-020E/CHY, which provides a fixed gain of 20V/VOn board options to select either ground or an external reference voltageThe DUT footprint is for the 6-pin SOT-23 package
