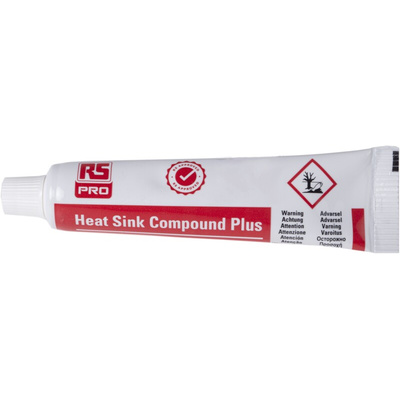

2173835, RS PRO Silicone Thermal Grease, 2.9W/m·K, Термопаста

2173835
Номер производителя: 2173835Производитель: RS PRO
Цена за шт.
1812.60 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

SMT Heat Sink Compound Plus

General purpose silicone grease suitable to be used in various applications and in a wide operating temperature range. This metal oxide filled silicone oil paste, gives a superior thermal conductivity for thermal coupling of electrical and electronic components. The thermal grease is efficient and easy to use, with non creep characteristics.

Key Features
•20 ml Tube
•Superior thermal conductivity even at high temperatures
•Excellent non-creep characteristics
•Safe and easy to use
•4 Years shelf life

SMT Silicone Heat Compound Paste

This general purpose heat sink silicone grease from RS Pro can be used across a number of applications and within a wide operating temperature range.

The compound is made up of metal oxide and silicone oil and is thermally conductive. The thermal paste works by filling in all those minuscule imperfections, which could otherwise trap tiny air particles in between the CPU and heat-sink and therefore prevent the CPU from cooling properly.

Features and Benefits

• 20 ml tube
• Superior thermal conductivity even at high temperatures
• Excellent non-creep characteristics
• Safe and easy to use
• 4 years shelf life

How do I use silicone grease?

Apply a thin layer of the grease onto the contact surface. Ensure that the entire interface is covered which will prevent hot-spots. Remove any excess paste squeezed out after mounting has taken place. Best results are achieved when a thin coat in applied between the mating surfaces.

Техническая спецификация
pdfRS Heat Sink Compound Plus (EN - SDS)
pdfRS Pro Datasheet
Диапазон рабочих температур:
-40 → +200 °C
Материал:
Силикон
Рабочая температура - максимальная:
+200°C
Рабочая температура - минимальная:
-40°C
Теплопроводность:
2.9Вт/м·К
Химический компонент:
Powdered Metal Oxides, Silicone Oil
