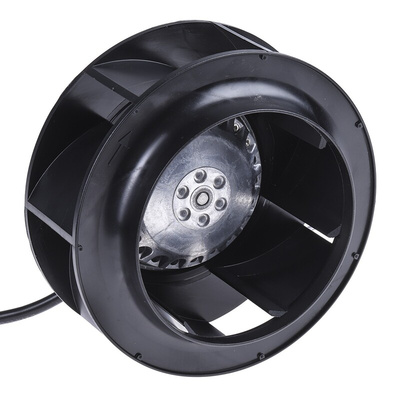

R2E133-BH66-05, ebm-papst R2E Series Centrifugal Fan, 230 V ac, 290m³/h, AC Operation, Вентилятор

ebm-papst Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 290m³/h (for 50Hz) at a fan speed of 2800rpm and has a supply voltage rating of 230VAC. It is an ideal solution for a wide range of applications and is also ideally suited for intake suction use. This is specifically those used for intake suction using backwards-curved blades, do not require a scroll housing. This adds to the ease of use and versatility. It is 133mm wide and 91mm deep.

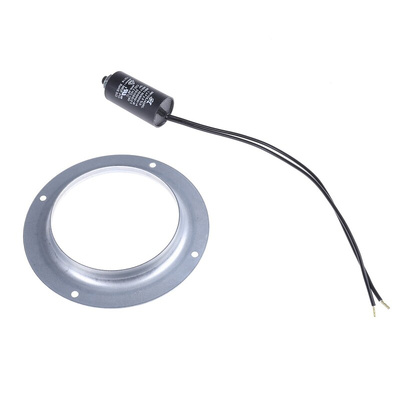

Supplied with a capacitor and an inlet ring.

Features and Benefits

Class B insulation
Material of impeller is PA plastic 6, Fibreglass-reinforced
Noise level is 56dB
Ball bearing

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

CE certified
CCC certified
EAC certified
IP44 rated

2003010401038568 China CC

R2E133-BH66-05 Datasheet

Operating Instructions
