R2E180-CB28-01, ebm-papst R2E180 Series Centrifugal Fan, 230 V ac, 450m³/h, AC Operation

ebm-papst Centrifugal Fan

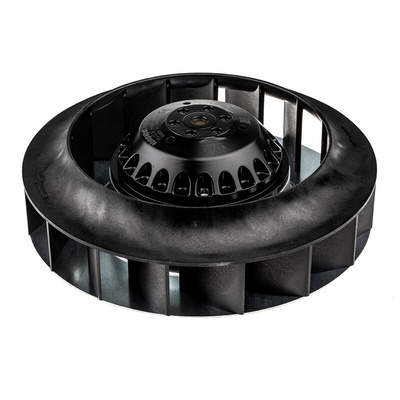

The ebm-papst centrifugal fan has an airflow of 440m³/h (for 50Hz) at a fan speed of 2550rpm and has a supply voltage rating of 230VAC. It features backwards-curved blades for a wide range of applications requirements and is also ideally suited for intake suction use. Also, ebm-papst centrifugal fans and blowers, specifically those used for intake suction using backwards-curved blades, do not require a scroll housing. This adds to the ease of use and versatility. It is 180mm wide and 54.5mm deep.

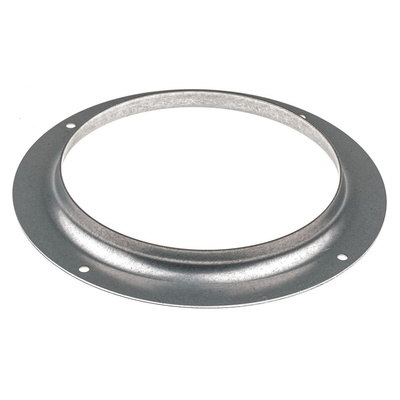

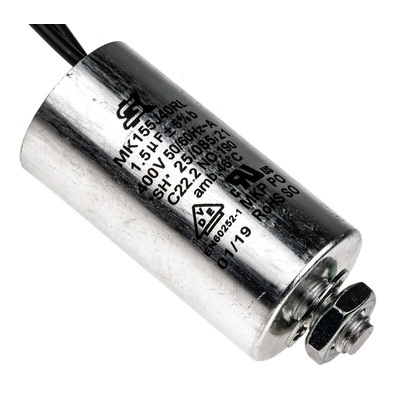

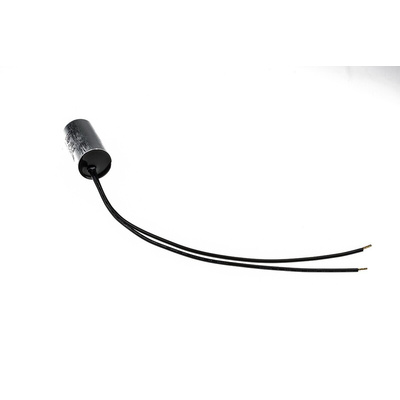

Supplied with a capacitor and an inlet ring.

Features and Benefits

Class B insulation
Material of impeller is PA plastic 6, Fibreglass-reinforced
Noise level is 64dB
Ball bearing

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

CE certified
CCC certified
EAC certified
IP44 rated
