R2E225-AT51-05, ebm-papst R2E225 Series Centrifugal Fan, 230 V ac, 825m³/h, AC Operation

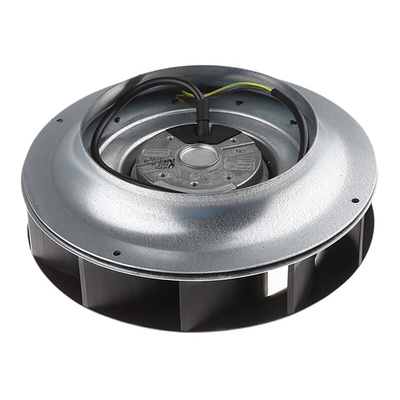

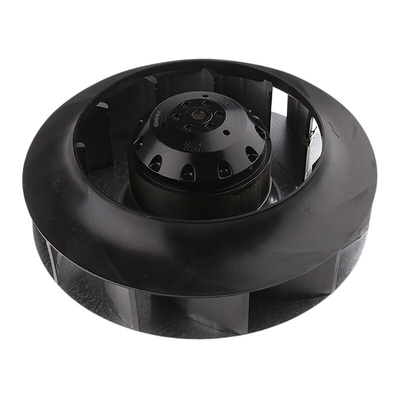

ebm-papst Centrifugal Fan

The ebm-papst single inlet centrifugal fan has an airflow of 825m³/h (for 50Hz) at a fan speed of 2680rpm and a supply voltage rating of 230VAC. This is backwards-curved, long blades and radial impeller design. The air intake and flow channel geometries are the outstanding features of RadiCal impellers. Shaped to minimize energy losses and flow separation as air moves through the impeller, these features result in increased aerodynamic efficiency and lower acoustic noise. Combining these impellers with ebm-papst GreenTech EC motors with continuous speed control provides the most efficient, flexible and quietest centrifugal fans on the market. It is 255mm wide and 69mm deep.

Inclusions:
A capacitor and an inlet ring.

Features and Benefits

High aerodynamic efficiency
Quiet running, especially reduced tonal noise
Unrivalled compactness
Robust and maintenance free
Choice of proven single or 3-phase asynchronous motors or more efficient
GreenTech EC versions available in fixed speed or variable speed control options
Class B insulation

Applications

Air-conditioning
Data centre
Energy generation
IT/ telecom
Industrial
Medical
Mobile
Ventilation

Certifications

UL approved
CE certified
CSA certified
CCC certified
GOST certified
VDE approved
IP44 rated

2003010401038564China CC
