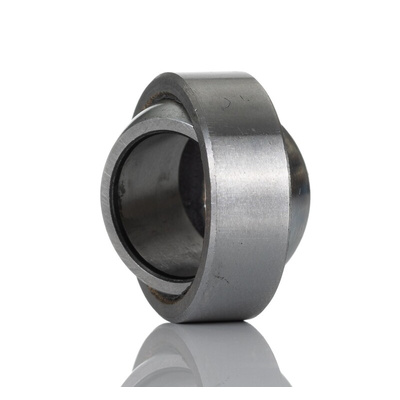

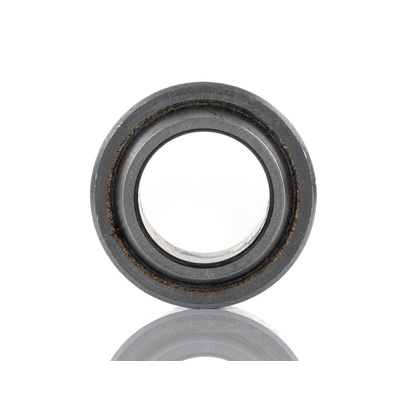

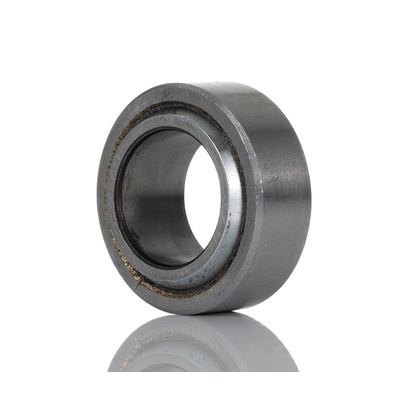

SKF GE 15 C 15mm Bore Spherical Bearing, 26mm O.D

SKF Spherical Bearing, 15mm ID, 26mm OD, 18kN Dynamic Load Rating, 45kN Static Load Rating - GE 15 C

Looking for a bearing that delivers all-round performance? Choose this spherical bearing from SKF. It can handle radial loads or combined radial and axial loads in a constant direction, making it a versatile piece of kit. As its steel and PTFE sintered bronze sliding surfaces resist wear and corrosion, it's a long-lasting part that gets on with the job without much maintenance. A dynamic load rating of 18kN and a static load rating of 45kN mean it keeps your heavy-duty processes rolling.

• Light weight of 32g to put minimal strain on your equipment
• Bearing steel material is resistant to impact, corrosion and wear for durability in harsh environments
• Compact inside diameter of 15mm and outside diameter of 26mm to fit onto small shafts

Applications

• Automotive manufacturing
• Textile industry
• Automated assembly lines
• Paper and pulp mills

The SKF spherical bearings suitable for oscillating movements and that can accommodate misalignment. Rolling bearings only partly fulfil these requirements as they are generally designed for continuous rotation and can only accommodate limited misalignment. Therefore SKF manufactures spherical plain bearings, bushings and rod ends to provide an sensible solution to these challenges. SKF manufactures spherical plain bearings, bushings and rod ends in various designs and with different sliding contact surface combinations. Each combination and design has characteristic properties which makes it particularly acceptable for certain applications.

Can I use this bearing in high-heat environments?

Cylindrical bore type
0° nominal contact angle

Yes, this bearing has a broad operating temperature range of -50°C to +150°C and can tolerate temperatures up to +280°C for short periods of time, so it can take the heat in harsh environments.

Datasheet - GE 15 C

Catalogue - Spherical PlainBearings and Rod Ends
