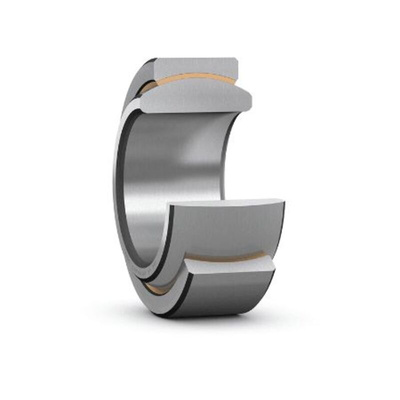

SKF GE 17 C 17mm Bore Spherical Bearing, 30mm O.D

SKF Spherical Bearing, Plain Bearing Type, 22.4kN Dynamic Load Rating, 17mm ID, 30mm OD - GE 17 C

Keep your machine processes rolling using this spherical bearing from SKF. It's a handy all-rounder, as it allows for rotation in two directions and can handle both axial and radial loads. The unit's inner and outer rings are made from steel, so you can trust it to hold its own against corrosion and shrug off the impacts you'd expect in harsh environments. A wide operating temperature range of -50°C to +150°C means this bearing performs reliably in extreme conditions without losing efficiency.

Features & Benefits

• Static load rating of 56kN and dynamic load rating of 22.4kN for use in heavy-duty applications
• Light weight of 50g means it puts minimal strain on your setup
• Compact inside diameter of 17mm and outside diameter of 30mm for use with smaller shafts

Applications

• Medical equipment
• Automation and robotics systems
• Food and beverage production

What kind of maintenance does this bearing need?

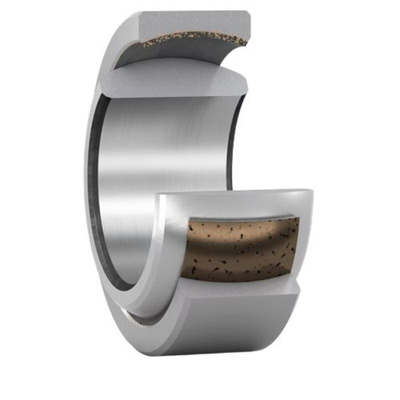

The bearing's contact surface is made of steel and PTFE sintered bronze that's self-lubricating. This means it's virtually maintenance-free, saving you time and effort.

Datasheet - GE 17 C

Catalogue - Spherical Plain Bearings and Rod Ends
