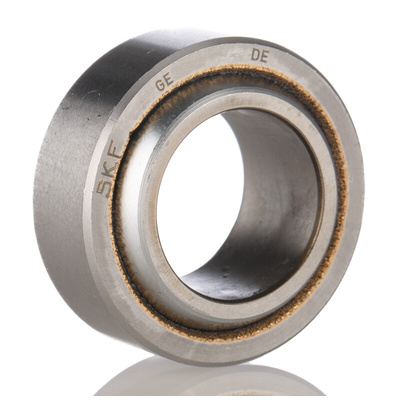

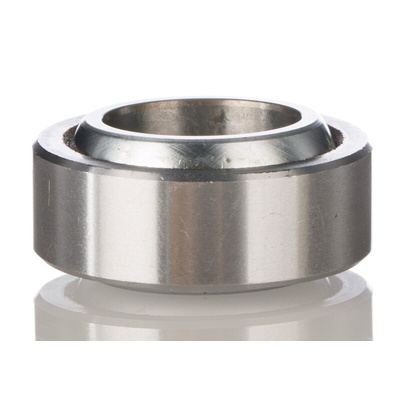

SKF GE 25 C 25mm Bore Spherical Bearing, 42mm O.D

SKF Spherical Bearing, Radial, Plain, 25mm Bore, 42mm OD - GE 25 C

Choose this spherical plain bearing from SKF for shafts moving in a constant direction under slow and heavy loads. It features a spherical inner ring housed in an outer ring for smooth rotation between the surfaces. This also enables the bearing to accommodate misalignment between the shaft and housing. Thanks to its bore size of 25mm and outside diameter of 42mm, you can simply mount this unit on large industrial shafts. The bearing is made from a combination of durable steel and PTFE sintered bronze for smooth contact between the rings to reduce friction and improve energy efficiency.

• Self-lubricating contact surfaces need minimal maintenance
• Very wide operating temperature range between -50°C and +150°C to withstand extreme environments
• Steel material for added durability

Applications

• Agricultural industry
• Conveyor systems
• Marine industry
• Industrial fans

How much load can this bearing withstand?

The bearing has a dynamic load rating of 51kN for fast rotation under moving surfaces and a static load rating of 127kN under stationary applications. This means you can rely on it to support demanding operations.

Datasheet - GE 25 C

Catalogue - Spherical plain bearings and rod endsn
